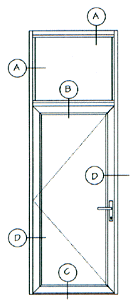

Typical Elevation - Exterior View |
|
A -
A. Transom Frame Detail |
 |
B. Door Head Detail |
|
C. Threshold Detail |
|
D. Door Jamb Detail |
|
| E. General Information
Insulated glass doors as manufactured by Dome'l Inc., Clifton, New Jersey. Thermally insulated door and door frame will be fabricated from 6063-T5 extruded aluminum in standard Dome'l finish (clear anodized, bronze anodized, bronze or white painted). Custom finishes available upon request. Doors to have mitered corners, secured with corner keys, crimped and epoxy welded. Standard hardware includes 5 point lock, keyed cylinder deadbolt, thinline lever handles, adjustable offset pivot hinges and friction arm. Standard glazing will be 1" insulated clear tempered glass. See specifications for more details.
|
| PROJECT: |  |
NOTES: |
| LOCATION: | ||
| ARCHITECT: | ||
| CONTRACTOR: | ||
| DATE: | ||
| DIMENSIONS: | ||
| ALUMINUM FINISH: | ||
| GLAZING: | For pricing information, please print and fax to: 973-614-8011 |
|
